Welcome to Juehui Light Source!
Please allow me to introduce our hot product: Infrared Lamp.
1. Basics :

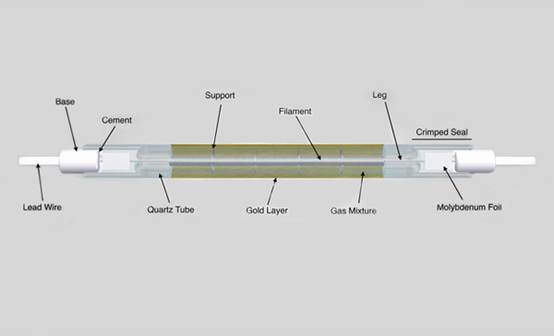

Twin tube IR lamp with gold reflector, with high temperature resistance nickel wire covered by ceramic beads. We can offer infrared lamps, which, by virtue of a gold reflector, can emit heat directly to the product. A gold finish on the infrared lamps reflects the infrared radiation. Consequently, much more infrared radiation is absorbed by the product.
IR heating lamps from Nanjing Juehui Light Source Co., Ltd cover the whole IR range. infrared short wave (SW), infrared fast response medium wave (FMW), infrared medium wave (MW), infrared carbon medium wave (CMW). Choosing the correct spectrum for your production can give you shorter heating time, higher production rate, and more energy savings.
2. Hot Features:
Short-wave infrared radiation has high heating power. Short-wave lamps are particularly well-suited for processes that require quick start-up and shut-off, since they achieve their full operating efficiency within seconds. Juehui Light Source has designed infrared heaters in the highly stable and application-proven twin tube format. Twin tube lamps are notable for their high radiation density and high power intensity.
1. High radiation density in a small area
2. Optimized reflection thanks to back-mounted gold reflector: increasing output and saving energy
3. Practically no heating-up and cooling-down times
4. Economic
5. Heated lengths up to 40″
6. Stock, Custom and OEM sizes
7. High service life
8.High power densities

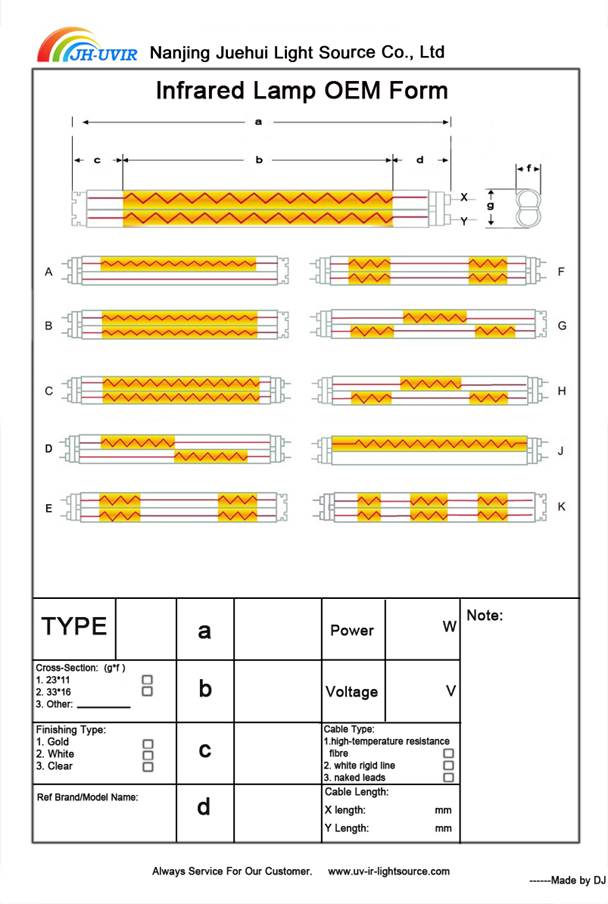

3. OEM details:
4.Applications:
| 1. Infrared Heating For Plastics Process IR drying of coatings on plastics IR stretching or shrinking plastics IR Heating For Plastic Packaging IR heating for blow molding of PET bottles | 5. Infrared Heating For the Glass Industry IR preheating of car glass IR drying of coatings on glass IR heating for manufacturing and cutting laminated glass |
| 2. Infrared Heating For Photovoltaic Industry IR heating for string soldering IR preheating for sputtering processes | 6. Infrared Heating For the Textiles Industry IR drying of coatings on textiles IR heating for the laminating of fabrics |
| 3. Infrared Heating For the Printing Industry IR curing ink on cloth IR drying for inkjet-based CTP plates IR drying of printing products, such as those used in the banner machine | 7. Infrared Heating For the Electronic Industry IR drying of coatings on electronic components IR heating for the aging of the electronic components |
| 4. Infrared Heating For Food And Chemical Industry IR heating for disinfection of tableware IR heating of chicken and vegetables IR heating of natural herbal medicine IR heating for removing snow and ice | 8. Infrared Heating For Health Maintenance IR heating for evaporating water in the sauna IR heating for keeping warm in winter IR heating for manufacturing infrared heater |

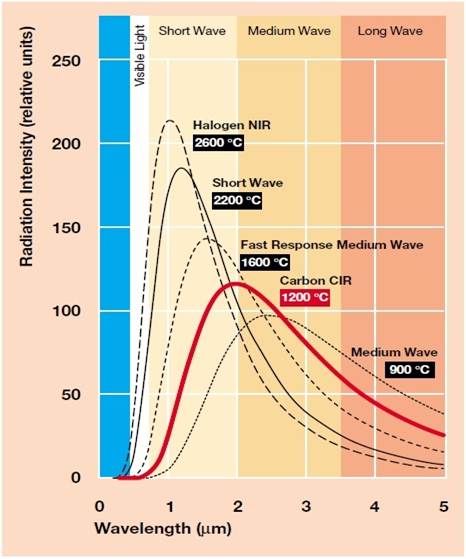

5. Intensity
6. OEM Lamp:
The UV lamp made by Juehui Light Source are widely usedin the following system:
Abbess – Adnos – Advancing Aetec – Agfa – Aktilux – Amba- American Ultraviolet – Amjo – Aquatron – Aradiant – Argo Argos – Barberan -Beltron Berkey – Brewer – Burgess-BLV Cefla – Chambon – Colight – Colodry-Comco – Dinippon Distrilampe – DPL – Dubuit Dupont – Elsemann – Eltosch EYE -FDS – Gallus – GEW – Giardina – GS – Happa – Hackermack- Hanovia HonleIdealquartz – IST – IVT Iwasaki – Japanese Storage Battery-Kuhnast Kammann -Klemm – Kopack – Lignacon – Mark Andy – Muller – Natgraph Nilpeter – Nolle -Nuarc – Offset – Olec – Osmo – ORC Parker – Philips Polytype – Primarc -Printconcept – SPS – SPE – Sanki – Schneider- Screen Serifasp – Spectral Starna- Svecia – Steinmann – Superfici – Sutter Siasprint – Technidry – Technigraf -Texel – Theimer – Theim – Van Keulen Uviterno – UV Products – UV Technology -UV Systems – Ushio – Van Dam Wallace Knight and many more..

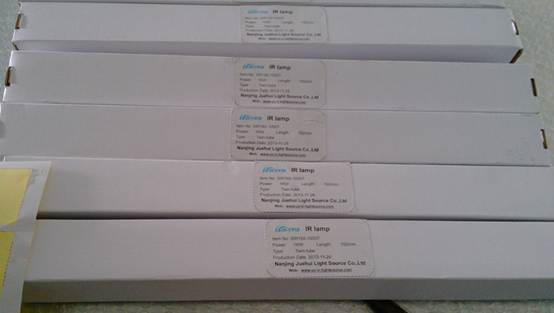

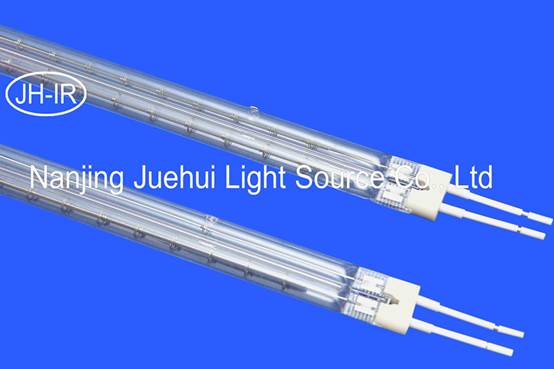

6. Photo Show :
Thanks for viewing. If there are any questions, please feel free to contact us
Medium wave IR lamp / Quartz tube/ Halogen light / infrared lamp/ infrared emitter
Watts: 2000W, Total length: 1100mm, Light length: 1050mm, Voltage: 380V, Color: Gold
1. More match IR spectrums: IR heating lamps from Nanjing Juehui Elec Lighting Tech Co., Ltd cover the whole IR range. Infrared short wave (SW), infrared fast response medium wave(FMW), infrared medium wave (MW), infrared carbon medium wave (CMW). Choosing the right spectrum for your production can result in shorter heating times, higher production rates, and greater energy savings.
2. Higher thermal density output: High-quality material and a polished fabrication process give the power of a single IR quartz heater be ranging from a couple of tens of watts to a couple of thousands of watts. You have sufficient choice to meet any requirement.
3. Applications: Plastics process, Photovoltaic Industry, Printing Industry, Food & Chemical Industry, Glass industry, Textiles industry, Electronic industry, Health Maintenance, etc
Heidelberg X reference
Machine Alt Part No Volts Watts Channel 1 Channel 2 OAL Type Leads Format Wavelength
Speedmaster 74 M6.170.0301/01 400 6950 2800 4150 900 H 4 x 100 23 x 11 Short-Wave
Speedmaster 52 G4.170.0101 415 3300 1650 1650 740 B 2 x 300 23 x 11 Short-Wave
Speedmaster 72 83.170.1311 415 3500 1750 1750 800 B 2 x 500 23 x 11 Short-Wave
M Offset/ MO 53.170.1311 415 3300 1650 1650 740 B 2 x 500 23 x 11 Short-Wave
Speedmaster 102 91.170.1311 415 3500 3500 0 1100 A 2 x 500 23 x 11 Short-Wave
Speedmaster 102 C7.170.0301/01 480 5400 3500 2 x 950 1200 H 4 x 100 23 x 11 Short-Wave
Speedmaster 74 M6.170.0301/01 480 4200 2100 2100 900 B 2 x 500 33 x 15 Medium-Wave
Speedmaster 102 91.170.1411 415 2500 1250 1250 1100 B 2 x 500 33 x 15 Medium-Wave
Speedmaster 102 SM102-FMW-B 480 6500 3000 3000 1125 B 2 x 500 33 x 15 Medium-Wave
Speedmaster 102 F7.170.0771 400 6200 3100 3100 1160 B 2 x 500 33 x 15 Medium-Wave
Speedmaster 72 83.170.1411 415 1900 950 950 800 B 2 x 500 33 x 15 Medium-Wave
